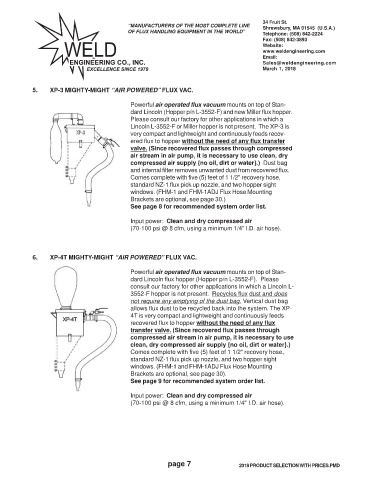

5. XP-3 MIGHTY-MIGHT “AIR POWERED” FLUX VAC.

Powerful air operated flux vacuum mounts on top of Stan-
dard Lincoln (Hopper p/n L-3552-F) and new Miller flux hopper.
Please consult our factory for other applications in which a
Lincoln L-3552-F or Miller hopper is not present. The XP-3 is
very compact and lightweight and continuously feeds recov-
ered flux to hopper without the need of any flux transfer
valve. (Since recovered flux passes through compressed
air stream in air pump, it is necessary to use clean, dry
compressed air supply {no oil, dirt or water}.) Dust bag
and internal filter removes unwanted dust from recovered flux.
Comes complete with five (5) feet of 1 1/2" recovery hose,
standard NZ-1 flux pick up nozzle, and two hopper sight
windows. (FHM-1 and FHM-1ADJ Flux Hose Mounting
Brackets are optional, see page 30.)
See page 8 for recommended system order list.

Input power: Clean and dry compressed air
(70-100 psi @ 8 cfm, using a minimum 1/4" I.D. air hose).

6. XP-4T MIGHTY-MIGHT “AIR POWERED” FLUX VAC.

Powerful air operated flux vacuum mounts on top of Stan-
dard Lincoln flux hopper (Hopper p/n L-3552-F). Please
consult our factory for other applications in which a Lincoln L-
3552-F hopper is not present. Recycles flux dust and does
not require any emptying of the dust bag. Vertical dust bag
allows flux dust to be recycled back into the system. The XP-
4T is very compact and lightweight and continuously feeds
recovered flux to hopper without the need of any flux
transfer valve. (Since recovered flux passes through
compressed air stream in air pump, it is necessary to use
clean, dry compressed air supply {no oil, dirt or water}.)
Comes complete with five (5) feet of 1 1/2" recovery hose,
standard NZ-1 flux pick up nozzle, and two hopper sight
windows. (FHM-1 and FHM-1ADJ Flux Hose Mounting
Brackets are optional, see page 30).
See page 9 for recommended system order list.

Input power: Clean and dry compressed air
(70-100 psi @ 8 cfm, using a minimum 1/4" I.D. air hose).
