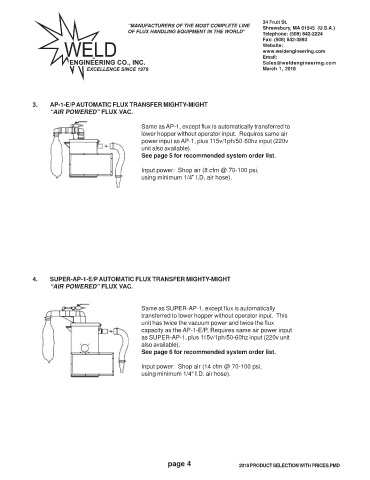

3. AP-1-E/P AUTOMATIC FLUX TRANSFER MIGHTY-MIGHT
“AIR POWERED” FLUX VAC.

Same as AP-1, except flux is automatically transferred to
lower hopper without operator input. Requires same air
power input as AP-1, plus 115v/1ph/50-60hz input (220v
unit also available).
See page 5 for recommended system order list.

Input power: Shop air (8 cfm @ 70-100 psi,
using minimum 1/4" I.D. air hose).

4. SUPER-AP-1-E/P AUTOMATIC FLUX TRANSFER MIGHTY-MIGHT
“AIR POWERED” FLUX VAC.

Same as SUPER-AP-1, except flux is automatically
transferred to lower hopper without operator input. This
unit has twice the vacuum power and twice the flux
capacity as the AP-1-E/P. Requires same air power input
as SUPER-AP-1, plus 115v/1ph/50-60hz input (220v unit
also available).
See page 6 for recommended system order list.

Input power: Shop air (14 cfm @ 70-100 psi,
using minimum 1/4" I.D. air hose).
