HTS-700-850° Flux Super Oven
- Typically holds over 700 lb. (226 Kg) of flux. (Weight will vary depending on type and density of flux.)
- Powerful 4000 watt heating elements (Uses “low watt density” elements to prevent localized over heating of flux)
- Designed to reduce H2O content in flux to below 0.05% by weight.
- Designed to eliminate “hydrogen assisted cracking” in high yeild steels.
- Total and uniform heating of flux. (Heating elements extend through the flux, insuring total heat transfer. Most flux particles are no more than 2″ from a heating element.)
- High temperature range from 200°F to 850°F (93°C to 454°C).
- High temperature fiber glass insulation for maximum efficiency
- Removable slag screen
- Lifting bales and fork rails make moving easy
- Flux valve on front of oven discharges hot flux quickly and easily into an appropriate container
- By a simple push of a button, the HTS-700-850 re-bakes flux at an adjustable temperature of 200°F (93°C) to 850°F (454°C) for an adjustable time (3 min. to 5hrs. factory set at 2hrs.).
- Automatically resets to an adjustable storage temperature of 175°F (79°C) to 550°F (288°C) after bake cycle.
- Holds at the storage temperature until the re-bake button is pressed. Pressing re-bake button starts re-bake cycle over again.
- Large control knobs and push buttons make operation very easy.
Open Literature Page (PDF)
|
HTP-100-850° Flux Super Oven
- Typically holds over 100 lb. (45.4 Kg) of flux. (Weight will vary depending on type and density of flux.)
- Designed to reduce H2O content in flux to below 0.05% by weight.
- Designed to eliminate “hydrogen assisted cracking” in high yeild steels.
- Powerful 1000 watt heating elements
- Total uniform heating of flux
- Temperature range from 200°F to 850°F (93°C to 454°C)
- Accurate temperature control
- Large thermometer for easy reading (both °F and °C)
- High temperature fiber glass insulation for maximum efficiency
- Removable slag screen
- Portable and easy to use
- Flux valve on front of oven discharges hot flux quickly and easily into an appropriate container
- By a simple push of a button, the HPT-100-850 re-bakes flux at an adjustable temperature of 200°F (93°C) to 850°F (454°C) for an adjustable time (3 min. to 5hrs. factory set at 2hrs.).
- Automatically resets to an adjustable storage temperature of 175°F (79°C) to 550°F (288°C) after bake cycle.
- Holds at the storage temperature until the re-bake button is pressed. Pressing re-bake button starts re-bake cycle over again.
- Large control knobs and push buttons make operation very easy.
Open Literature Page (PDF)
|

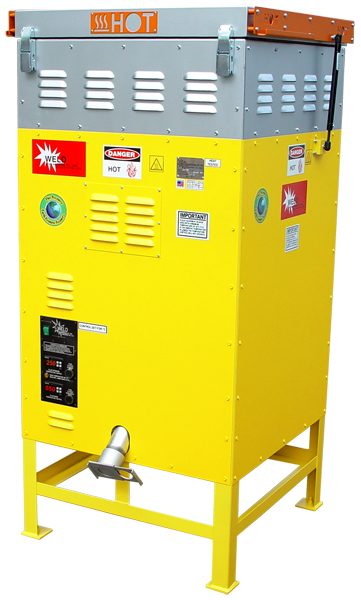

FO-700HT-AB Flux Oven
- Typically holds over 700 lb. (226 Kg) of flux. (Weight will vary depending on type and density of flux.)
- Powerful 4000 watt heating elements (Uses “low watt density” elements to prevent localized over heating of flux)
- Total and uniform heating of flux.(Heating elements extend through the flux, insuring total heat transfer. Most flux particles are no more than 2″ from a heating element.)

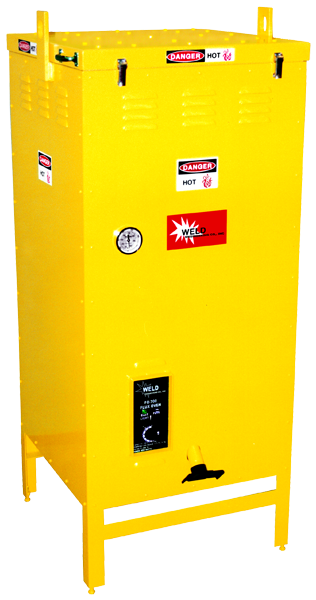

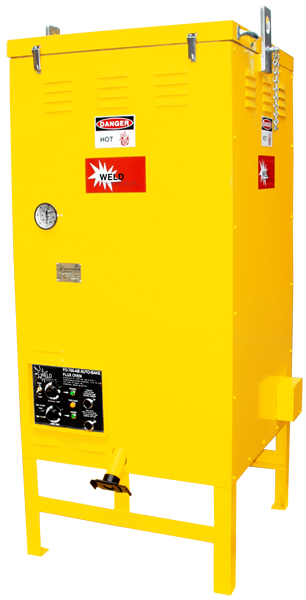

- Temperature range from 300°F to 700°F (148°C to 371°C). See our FO-700 or FO-700-AB for lower temperatures to 550°F (288°C).
- High temperature fiber glass insulation for maximum efficiency
- Removable slag screen
- Lifting bales and fork rails make moving easy
- Flux valve on front of oven discharges hot flux quickly and easily into an appropriate container
- By a simple push of a button, the FO-700HT-AB re-bakes flux at an adjustable temperature of 300°F (148°C) to 700°F (371°C) for an adjustable time (3 min. to 5hrs. factory set at 2hrs.).
- Automatically resets to an adjustable storage temperature of 300°F (148°C) to 700°F (371°C) after bake cycle.
- Holds at the storage temperature until the re-bake button is pressed. Pressing re-bake button starts re-bake cycle over again.
- Large control knobs and push buttons make operation very easy.
Open Literature Page (PDF)
|
|

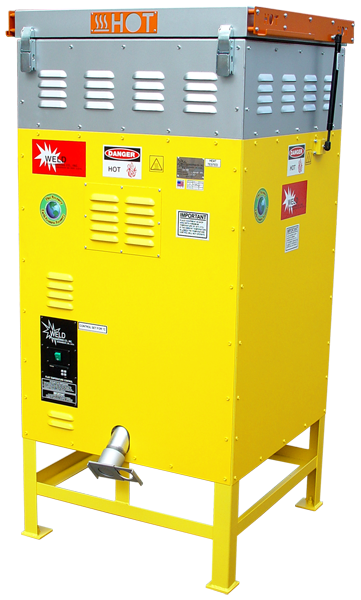

FO-700HT Flux Oven
- Typically holds over 700 lb. (226 Kg) of flux. (Weight will vary depending on type and density of flux.)
- Powerful 4000 watt heating elements (Uses “low watt density” elements to prevent localized over heating of flux)
- Total and uniform heating of flux.(Heating elements extend through the flux, insuring total heat transfer. Most flux particles are no more than 2″ from a heating element.)
- Temperature range from 300°F to 700°F (148°C to 371°C). See our FO-700 or FO-700-AB for lower temperatures to 550°F (288°C).
- High temperature fiber glass insulation for maximum efficiency
- Removable slag screen
- Lifting bales and fork rails make moving easy
- Flux valve on front of oven discharges hot flux quickly and easily into an appropriate container
Open Literature Page (PDF)
|

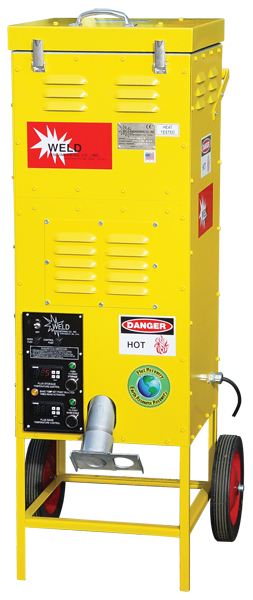

PFO-100-AB Flux Oven
- Typically holds over 100 lb. (45.4 Kg) of flux. (Weight will vary depending on type and density of flux.)
- Powerful 1000 watt heating elements
- Total uniform heating of flux
- Temperature range from 175 °F to 550 °F (79°C to 288°C)
- Accurate temperature control
- Large thermometer for easy reading (both °F and °C)
- High temperature fiber glass insulation for maximum efficiency
- Removable slag screen
- Portable and easy to use
- Flux valve on front of oven discharges hot flux quickly and easily into an appropriate container
- By a simple push of a button, the PFO-100-AB re-bakes flux at an adjustable temperature of 175°F (79°C) to 550°F (288°C) for an adjustable time (3 min. to 5hrs. factory set at 2hrs.).
- Automatically resets to an adjustable storage temperature of 175°F (79°C) to 550°F (288°C) after bake cycle.
- Holds at the storage temperature until the re-bake button is pressed. Pressing re-bake button starts re-bake cycle over again.
- Large control knobs and push buttons make operation very easy.
Open Literature Page (PDF)
|

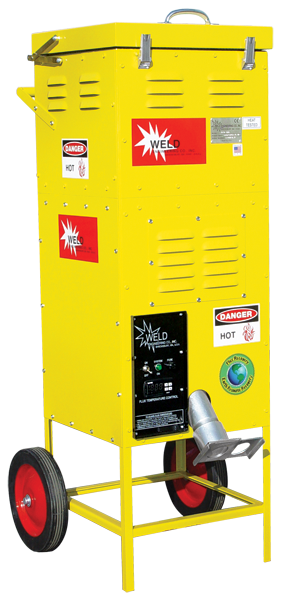

PFO-100 Flux Oven
- Typically holds over 100 lb. (45.4 Kg) of flux. (Weight will vary depending on type and density of flux.)
- Powerful 1000 watt heating elements
- Total uniform heating of flux
- Temperature range from 175 °F to 550 °F (79°C to 288°C)
- Accurate temperature control
- Bright digital thermometer for easy reading (both °F and °C)
- High temperature fiber glass insulation for maximum efficiency
- Removable slag screen
- Portable and easy to use
- Flux valve on front of oven discharges hot flux quickly and easily into an appropriate container
Open Literature Page (PDF)
|
