(Version TB-MM708)
Products Number Description Download PDF
SPS-1500,

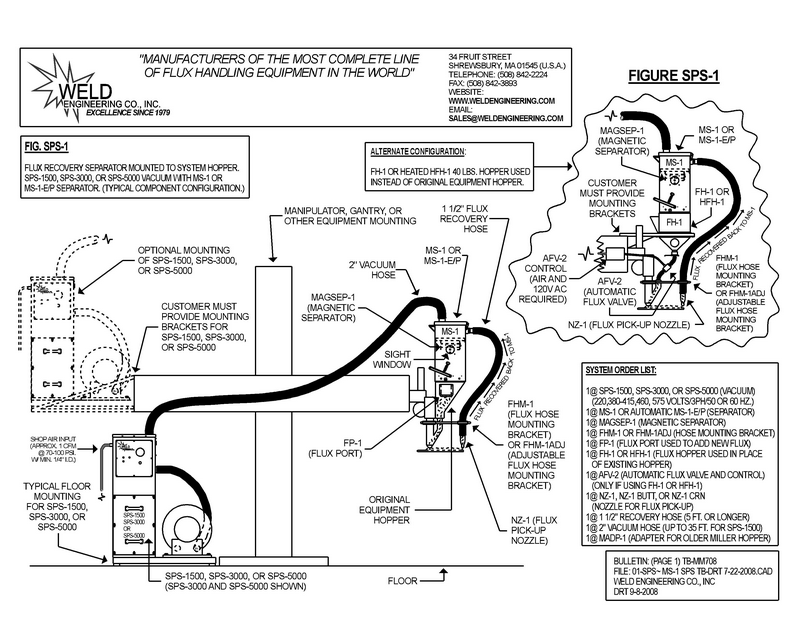

MS-1 		SPS-1 Flux recovery separator mounted to system hopper. SPS-1500, SPS-3000, or SPS-5000 vacuum with MS-1 or MS-1-E/P separator. Print Diagram
SPS-1500,

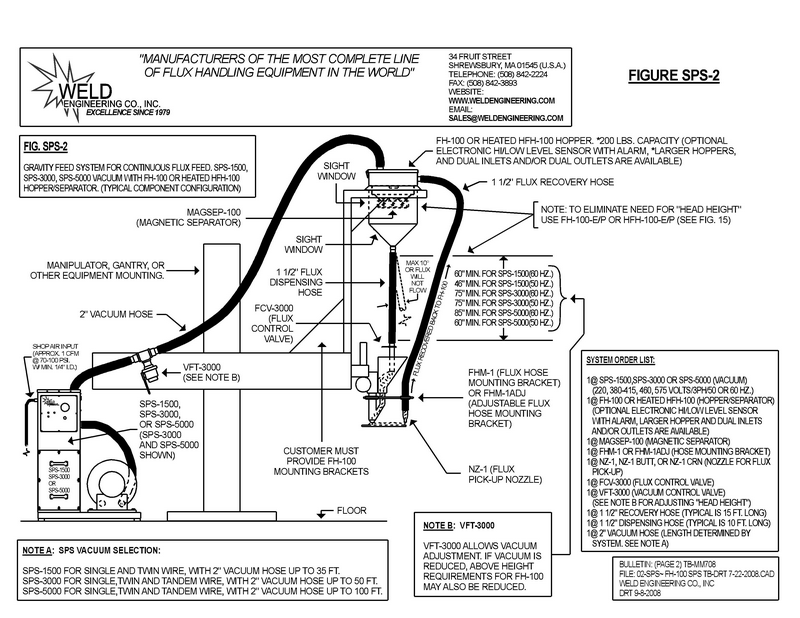

FH-100 		SPS-2 Gravity feed system for continuous flux feed. SPS-1500, SPS-3000, SPS-5000 vacuum with FH-100 or heated HFH-100 hopper/separator. Print Diagram
MM-1500X,

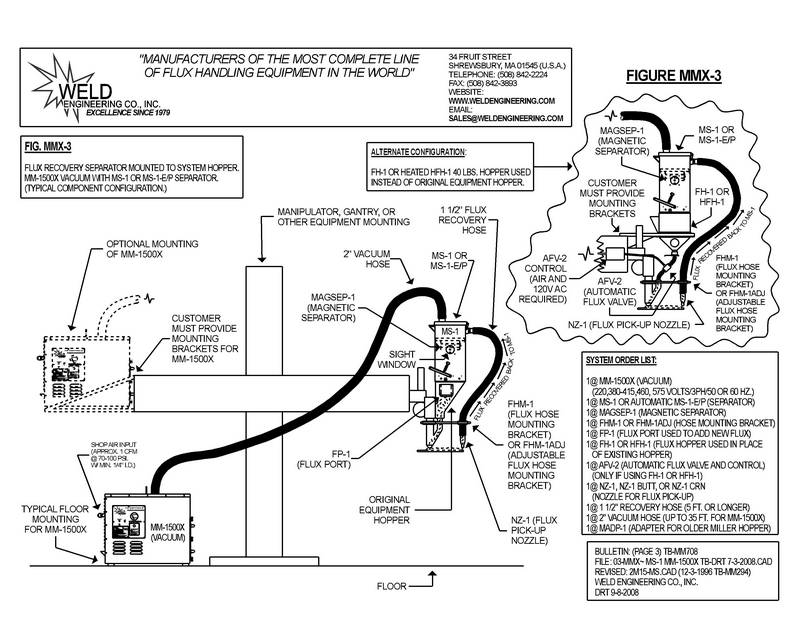

MS-1 		MMX-3 Flux recovery separator mounted to system hopper. MM-1500X vacuum with MS-1 or MS-1-E/P seperator. Print Diagram

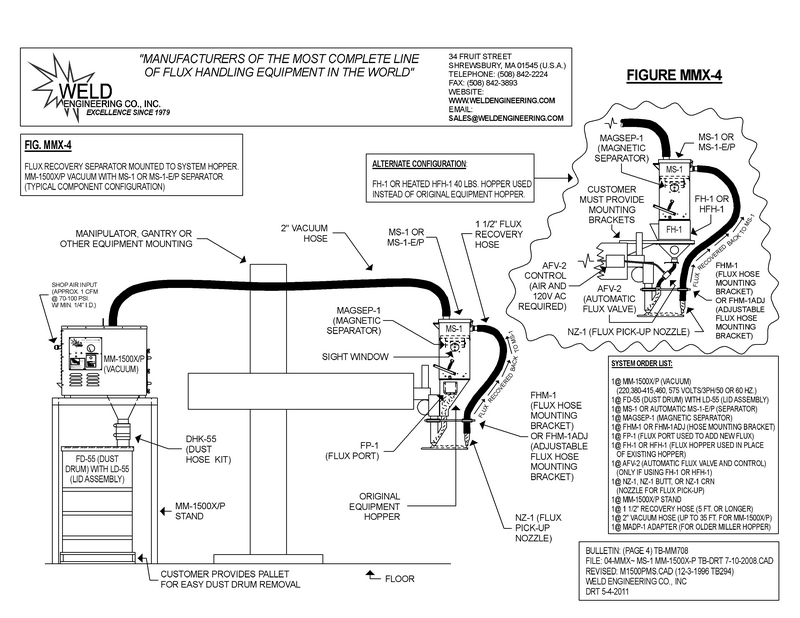

MM-1500X/P,
MS-1 		MMX-4 Flux recovery separator mounted to system hopper. MM-1500X/P vacuum with MS-1 or MS-1-E/P separator. Print Diagram

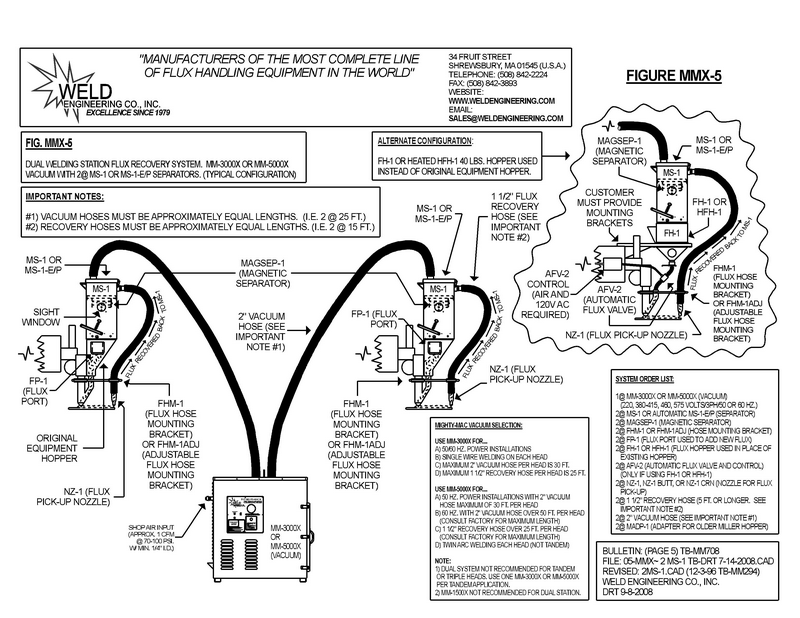

MM-5000X,
2@ MS-1 		MMX-5 Dual welding station flux recovery system. MM-3000X or MM-5000X vacuum with 2 MS-1 or MS-1-E/P separators. Print Diagram

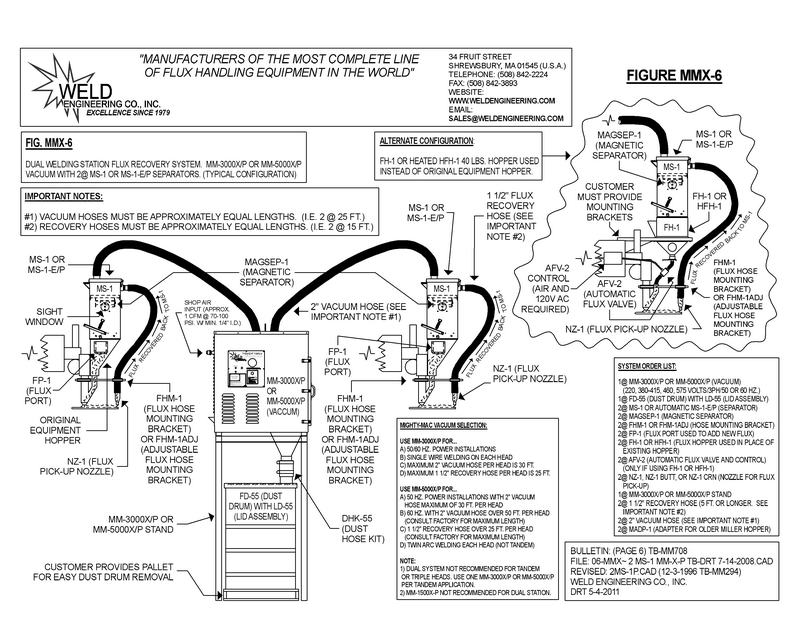

MM-5000X/P,
2@ MS-1 		MMX-6 Dual welding station flux recovery system. MM-3000X/P or MM-5000X/P vacuum with 2 MS-1 or MS-1-E/P separators. Print Diagram

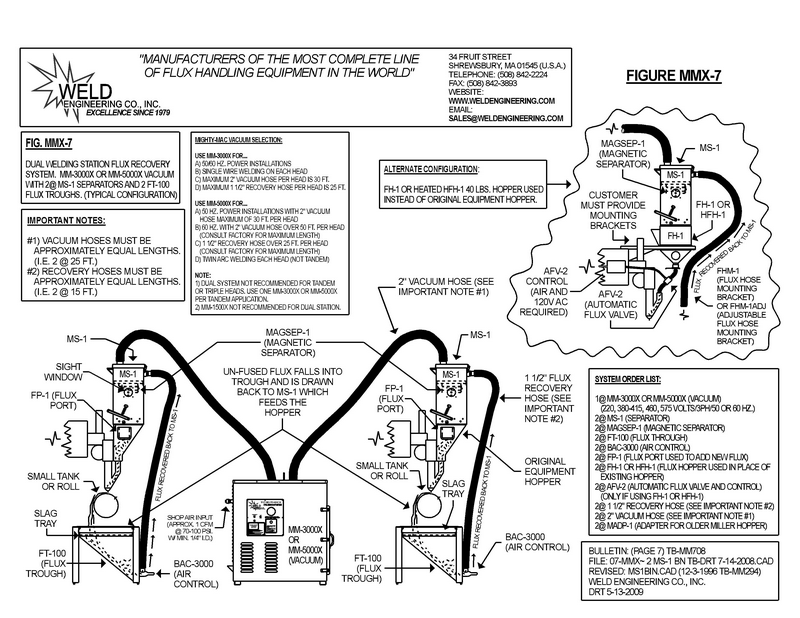

MM-5000X,
2@ MS-1,
2@ FT-100 		MMX-7 Dual welding station flux recovery system. MM-3000X or MM-5000X vacuum with 2 MS-1 separators and 2 FT-100 flux troughs. Print Diagram
MM-5000X,
2@ MS-1-E/P,

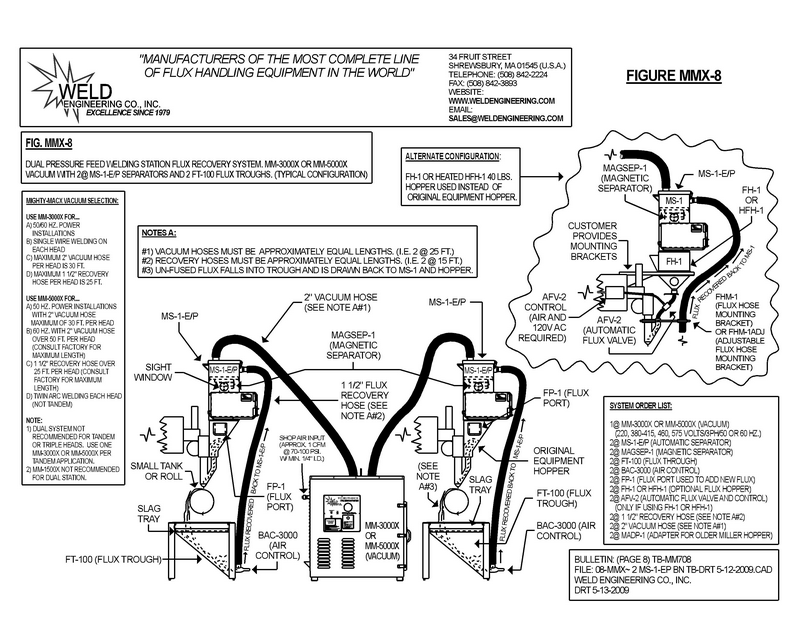

2@ FT-100 		MMX-8 Dual pressure feed welding station flux recovery system. MM-3000X or MM-5000X vacuum with 2 MS-1-E/P separators and 2 FT-100 flux troughs. Print Diagram
MM-1500X,

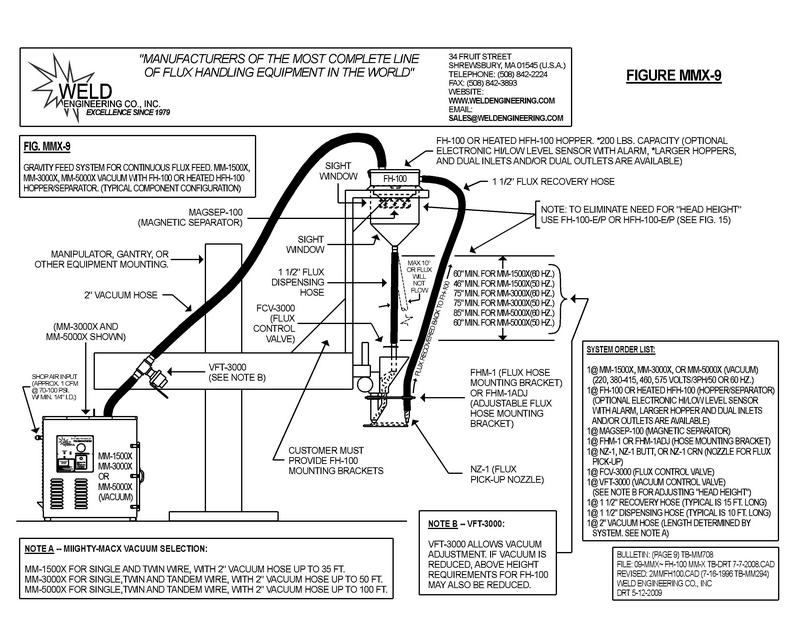

FH-100 		MMX-9 Gravity feed system for continuous flux feed. MM-1500X, MM-3000X, MM-5000X vacuum with FH-100 or heated HFH-100 hopper/separator. Print Diagram

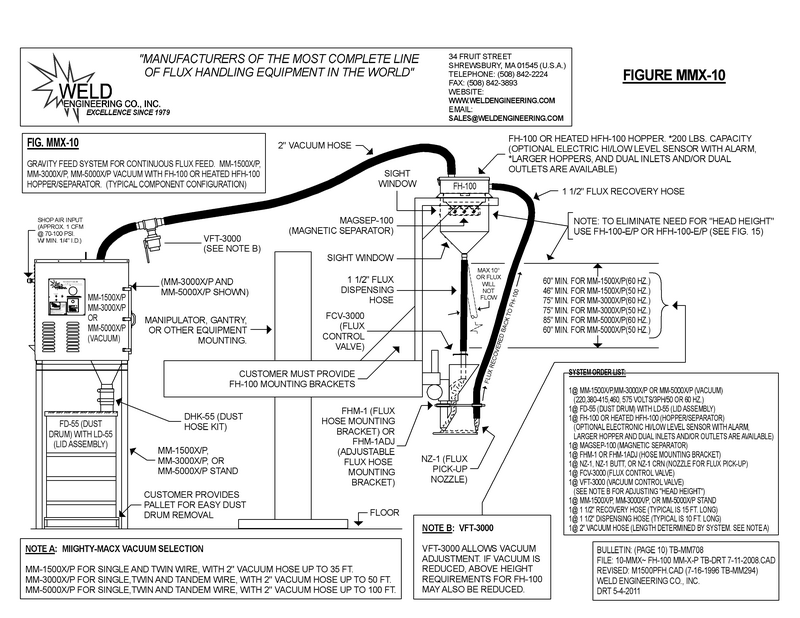

MM-1500X/P,
FH-100 		MMX-10 Gravity feed system for continuous flux feed. MM-1500X/P, MM-3000X/P, MM-5000X/P vacuum with FH-100 or heated HFH-100 hopper/separator. Print Diagram

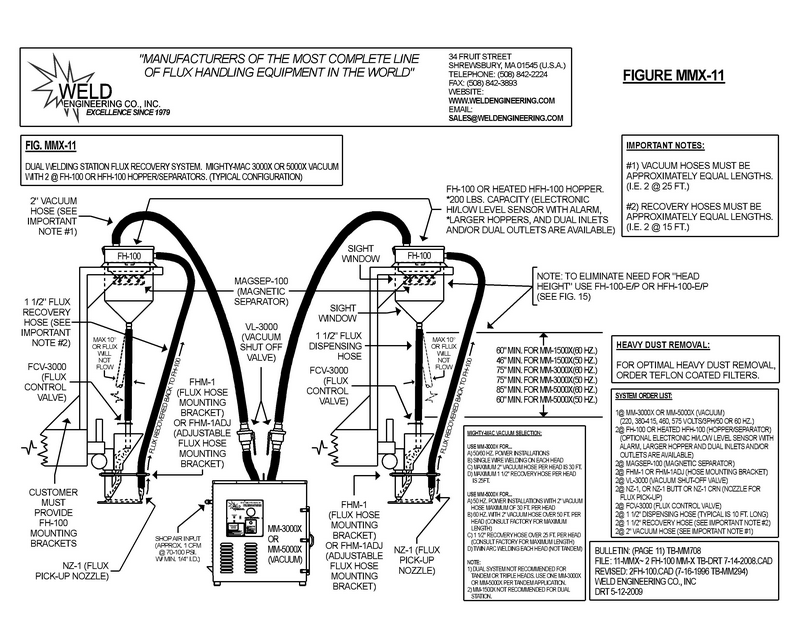

MM-5000X,
2@ FH-100 		MMX-11 Dual welding station flux recovery system. MM-3000X or MM-5000X vacuum with 2 FH-100 or 2 heated HFH-100 hopper/separators. Print Diagram
MM-5000X/P,

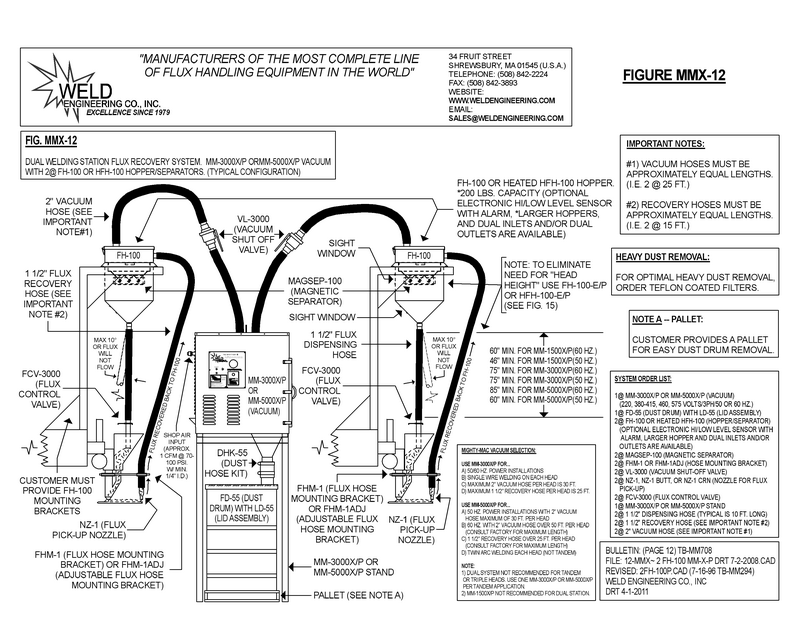

2@ FH-100 		MMX-12 Dual welding station flux recovery system. MM-3000X/P or MM-5000X/P vacuum with 2 FH-100 or 2 HFH-100 hopper/separators. Print Diagram

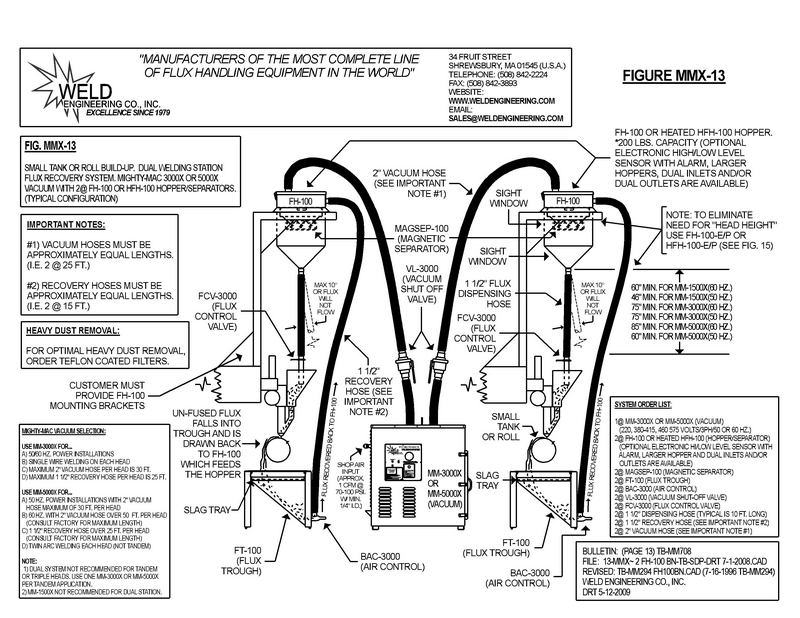

MM-5000X,
2@ FH-100,
2@ FT-100 		MMX-13 Small tank or roll build-up. Dual welding station flux recovery system. MM-3000X or MM-5000X vacuum with 2 FH-100 or 2 HFH-100 hopper/separators. Print Diagram
MM-5000X/P,
2@ FH-100,

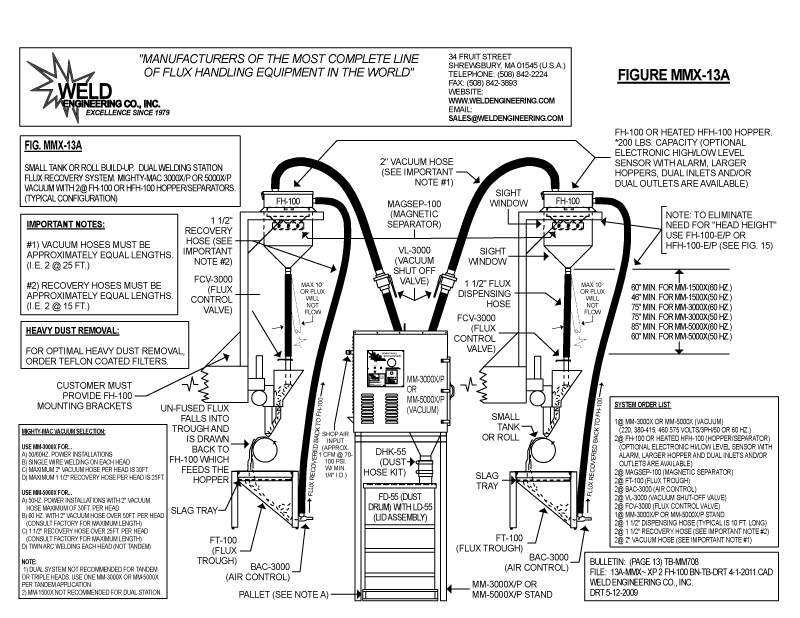

2@ FT-100 		MMX-13A Small tank or roll build-up. Dual welding station flux recovery system. MM-3000X/P or MM-5000X/P vacuum with 2 FH-100 or 2 HFH-100 hopper/separators. Print Diagram
MM-1500X,

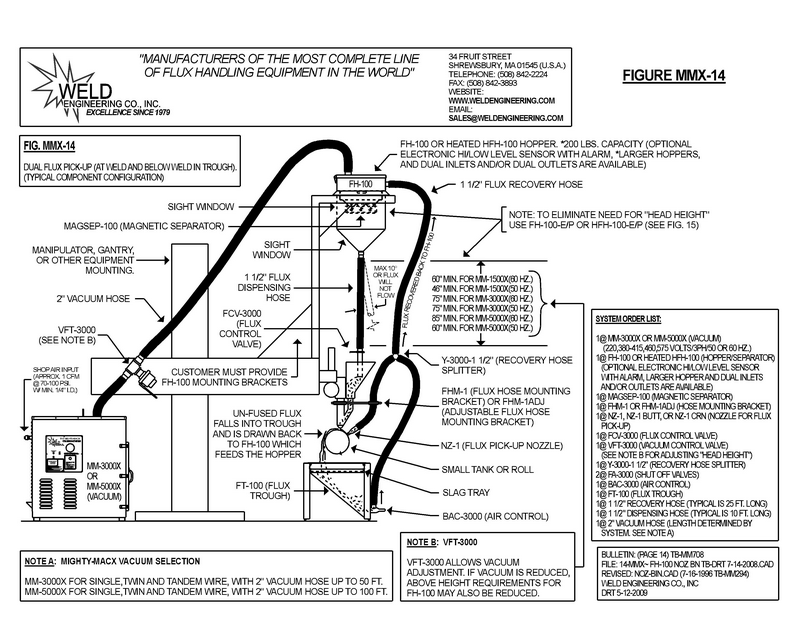

FH-100, FT-100 		MMX-14 Dual flux pick-up (at weld and below weld in trough). Print Diagram

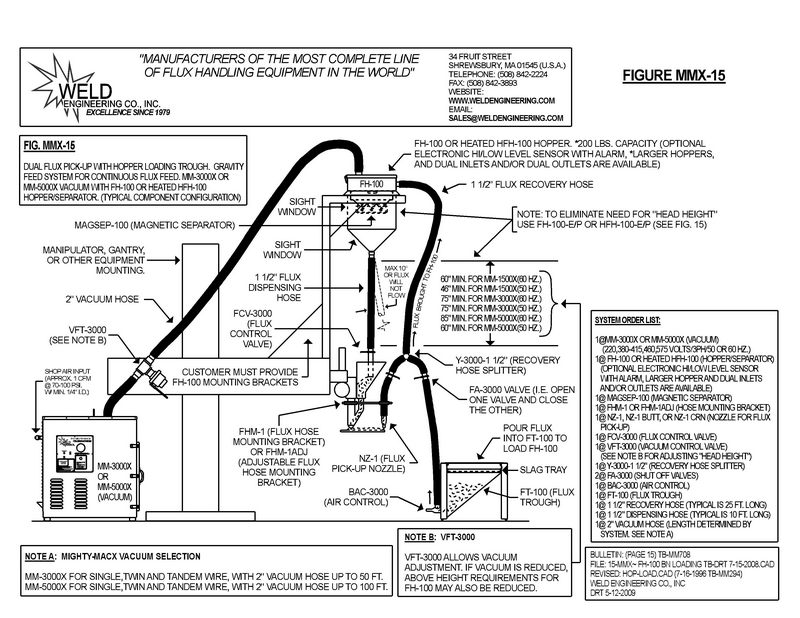

MM-1500X, FH-100,
FT-100, YA-3000,
2@ FA-3000 		MMX-15 Dual flux pick-up with hopper loading trough. Gravity feed system for continuous flux feed. MM-3000X or MM-5000X vacuum with FH-100 or heated HFH-100 hopper/separator. Print Diagram
MM-1500X,

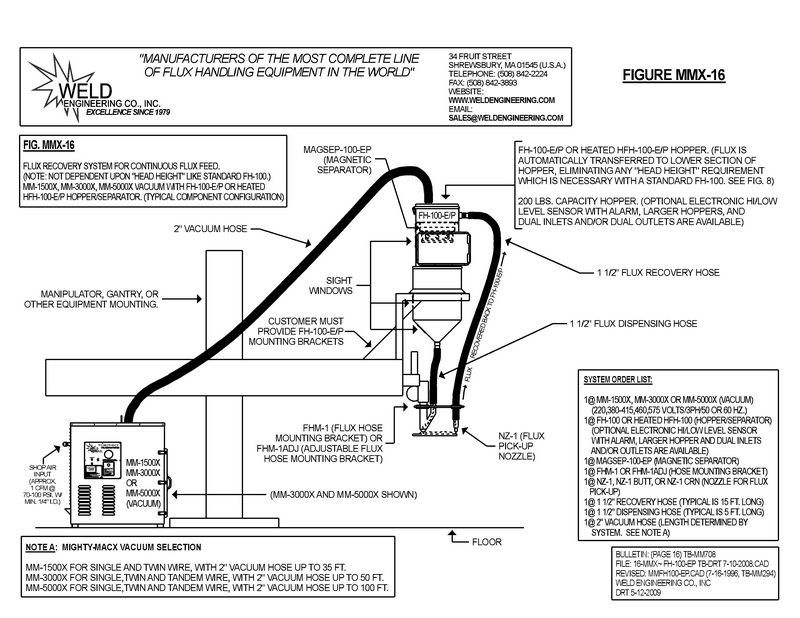

FH-100-EP 		MMX-16 Flux recovery system for continuous flux feed. (NOTE: Not dependent upon "head height" like standard FH-100.) MM-1500X, MM-3000X, MM-5000X vacuum with FH-100-E/P or heated HFH-100-E/P hopper/separator. Print Diagram
Pressure Feed Tank Systems
MM-1500X,
FH-100,

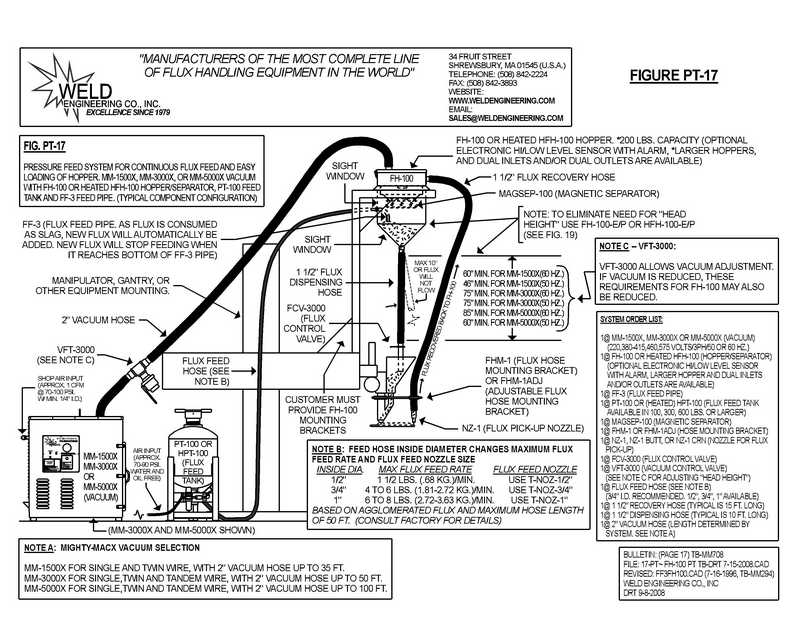

PT-100 		PT-17 Pressure feed system for continuous flux feed and easy loading of hopper. MM-1500X, MM-3000X, or MM-5000X vacuum with FH-100 or heated HFH-100 hopper/separator, PT-100 feed tank, and FF-3 feed pipe. Print Diagram

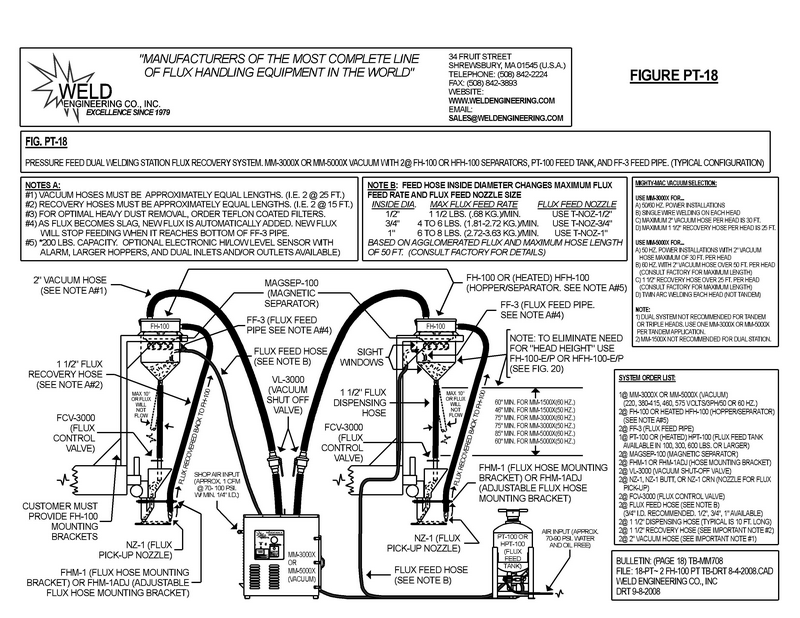

MM-1500X,
2@ FH-100,
PT-100 		PT-18 Pressure feed dual welding station flux recovery system. MM-3000X or MM-5000X vacuum with 2 FH-100 or 2 HFH-100 separators, PT-100 feed tank, and FF-3 feed pipe. Print Diagram

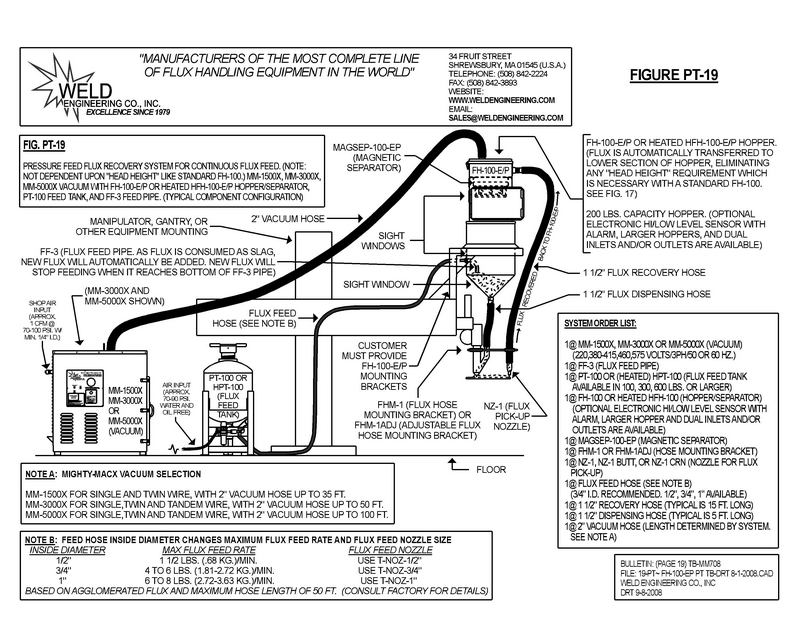

MM-1500X,
FH-100-E/P,
PT-100 		PT-19 Pressure feed flux recovery system for continuous flux feed. (NOTE: Not dependent upon "head height" like standard FH-100.) MM-1500X, MM-3000X, MM-5000X vacuum with FH-100-E/P or heated HFH-100-E/P hopper/separator, PT-100 feed tank, and FF-3 feed pipe. Print Diagram

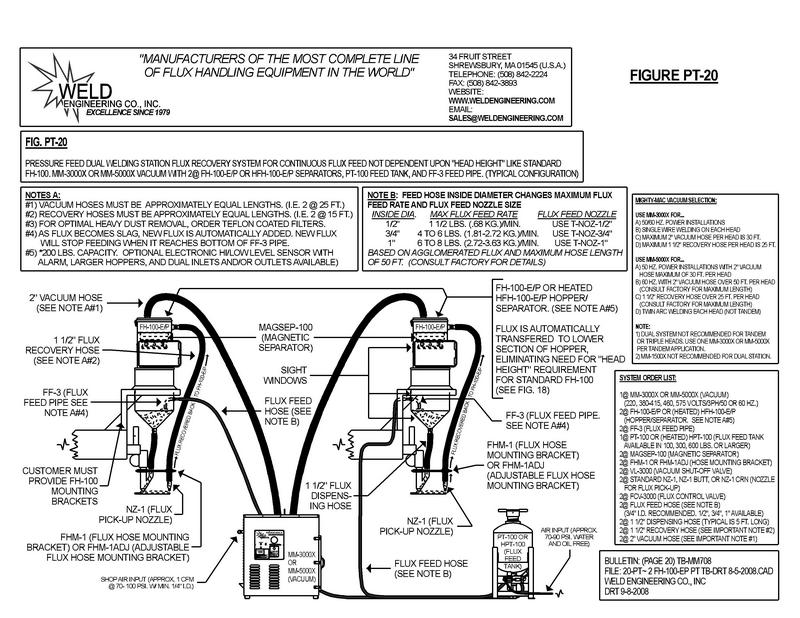

MM-1500X,
2@ FH-100-E/P,
PT-100 		PT-20 Pressure feed dual welding station flux recovery system for continuous flux feed not dependent upon "head height" like standard FH-100. MM-3000X or MM-5000X vacuum with 2 FH-100-E/P or 2 heated HFH-100-E/P hoppers/separators, PT-100 feed tank, and FF-3 feed pipe. Print Diagram
Pressure Feed and Recovery Systems

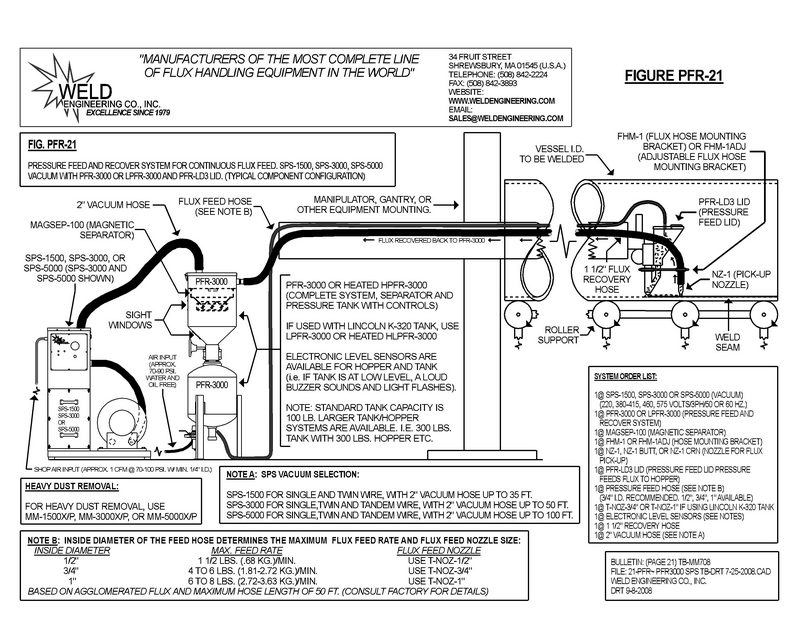

SPS-1500,
PFR-3000,
PFR-LD3 		PFR-21 Pressure feed and recover system for continuous flux feed. SPS-1500, SPS-3000, SPS-5000 vacuum with PFR-3000 or LPFR-3000 and PFR-LD3 lid. Print Diagram
MM-1500X,
PFR-3000,

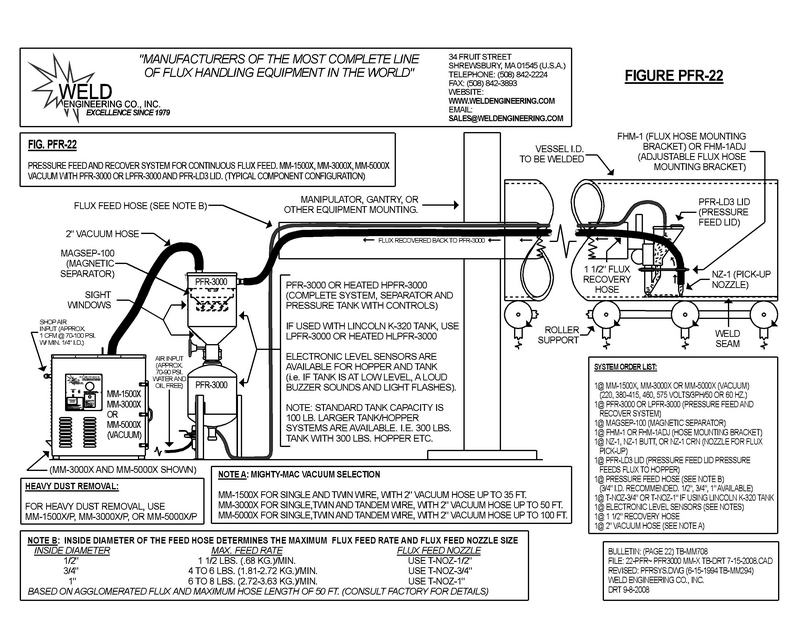

PFR-LD3 		PFR-22 Pressure feed and recover system for continuous flux feed. MM-1500X, MM-3000X, MM-5000X vacuum with PFR-3000 or LPFR-3000 and PFR-LD3 lid. Print Diagram

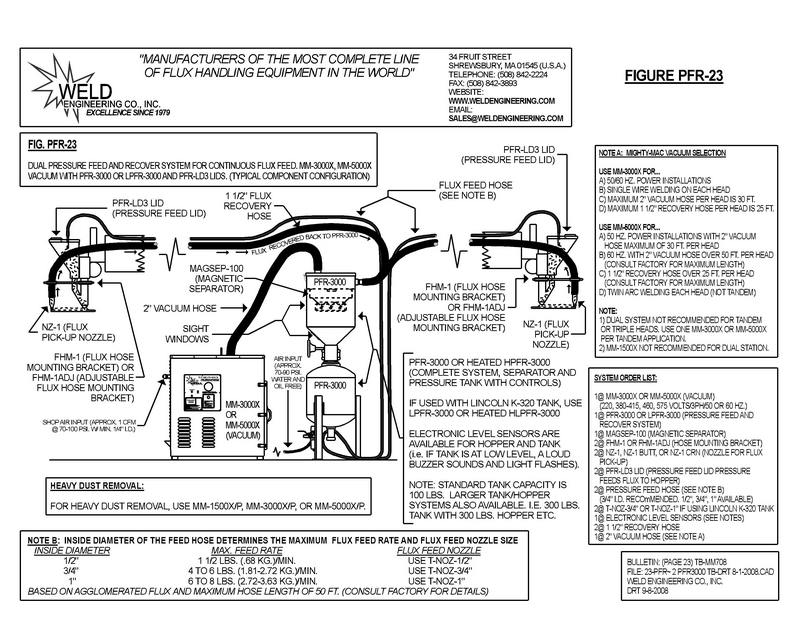

MM-1500X,
PFR-3000,
2@ PFR-LD3 		PFR-23 Dual pressure feed and recover system for continuous flux feed. MM-3000X, MM-5000X vacuum with PFR-3000 or LPFR-3000 and PFR-LD3 lids. Print Diagram
Heated Automatic Mixing

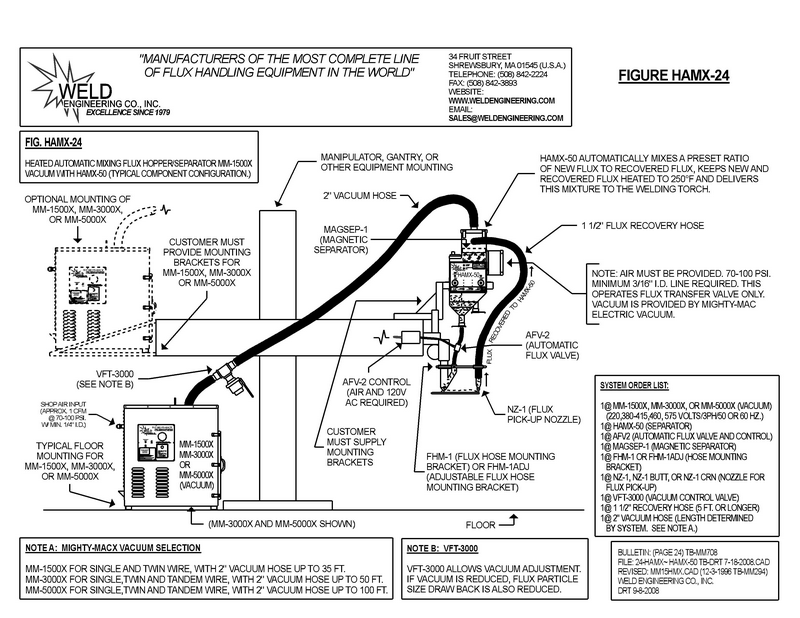

MM-5000X,
HAMX-50 		HAMX-24 HAMX-50 heated automatic mixing flux hopper/separator with MM-1500X, MM-3000X, MM-5000X vacuum. Print Diagram
MM-5000X,
HAMX-50,

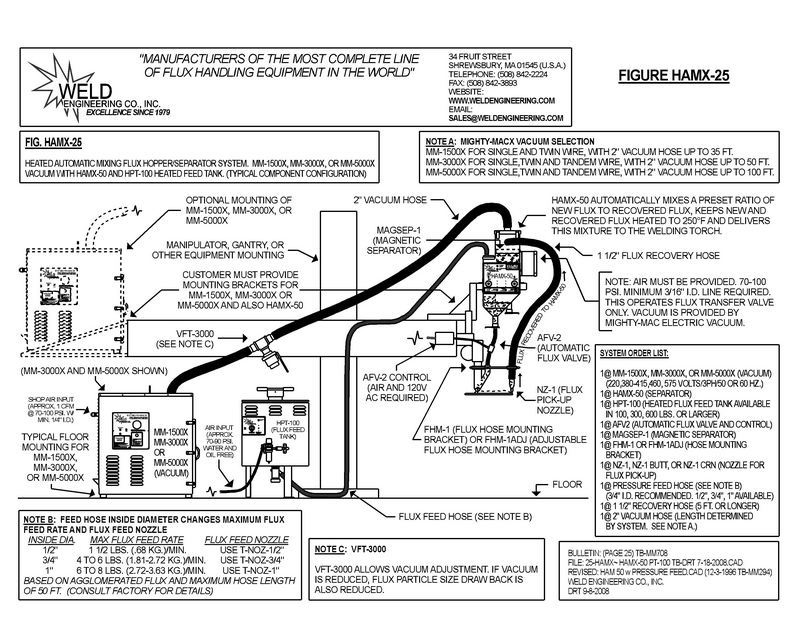

HPT-100 		HAMX-25 Heated automatic mixing flux hopper/separator system. MM-1500X, MM-3000X, or MM-5000X vacuum with HAMX-50 and HPT-100 heated feed tank. Print Diagram

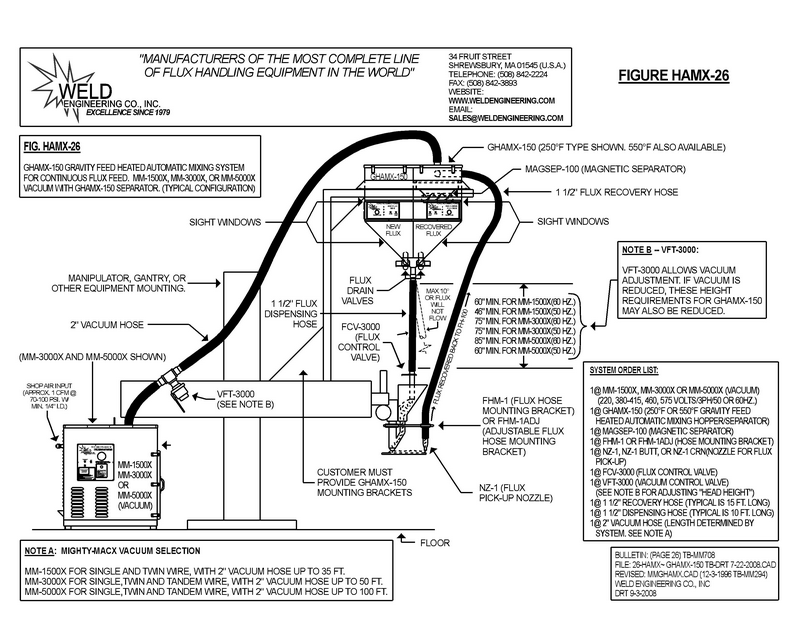

MM-5000X,
GHAMX-150 		HAMX-26 GHAMX-150 gravity feed heated automatic mixing system for continuous flux feed. MM-1500X, MM-3000X, or MM-5000X vacuum with GHAMX-150 separator. Print Diagram

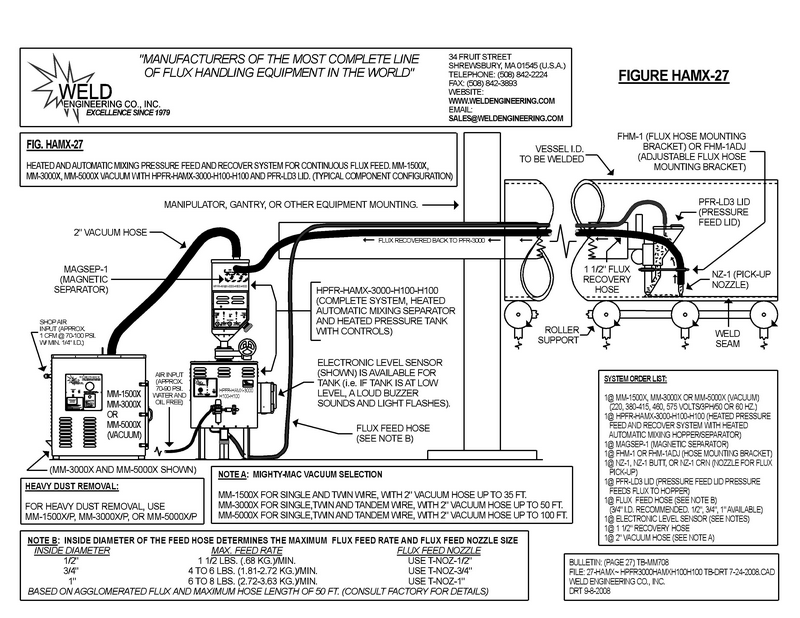

MM-5000X,
HPFR-HAMX-3000-H100-H100,
PFR-LD3 		HAMX-27 Heated automatic mixing pressure feed and recover system for continuous flux feed. MM-1500X, MM-3000X, MM-5000X vacuum with HPFR-HAMX-3000-H100-H100 and PFR-LD3 lid. Print Diagram
MM-5000X,
HPFR-HAMX-3000-H300-H300,

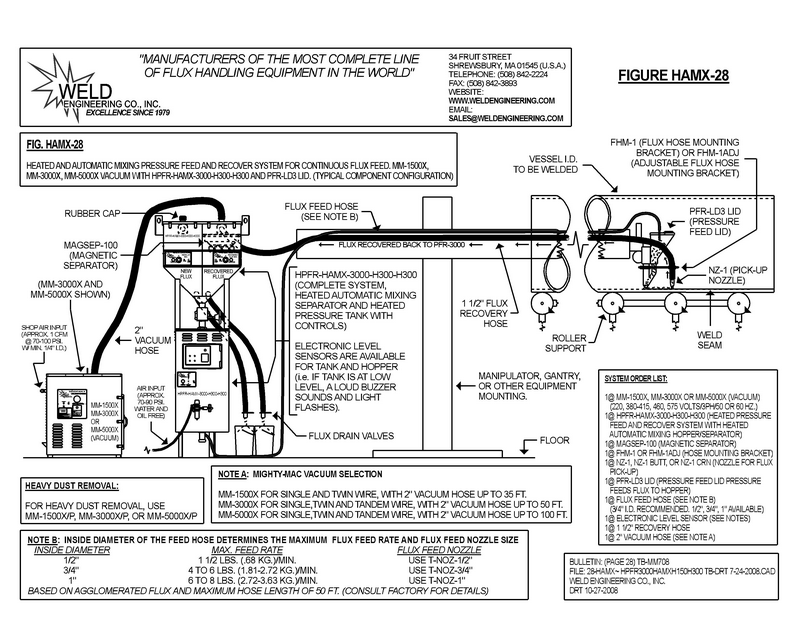

PFR-LD3 		HAMX-28 Heated automatic mixing pressure feed and recover system for continuous flux feed. MM-1500X, MM-3000X, MM-5000X vacuum with HPFR-HAMX-3000-H300-H300 and PFR-LD3 lid. Print Diagram

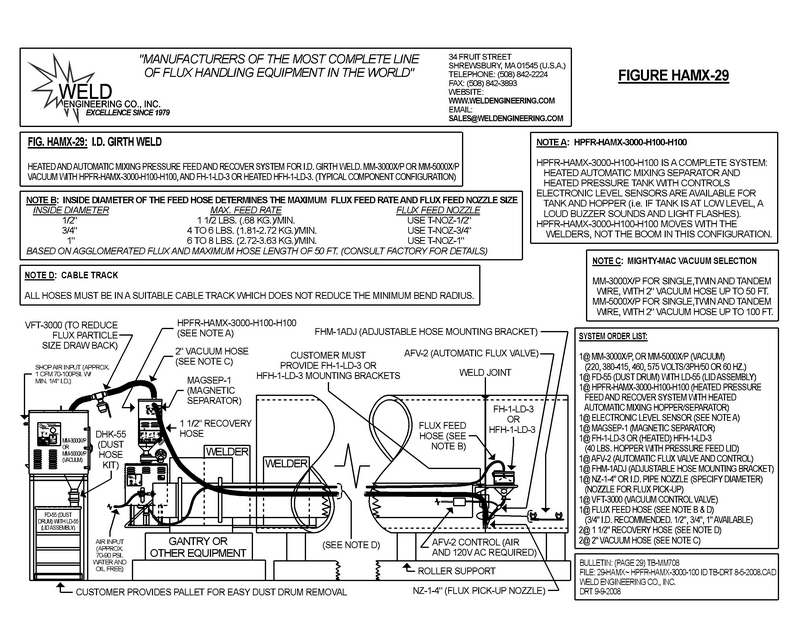

MM-5000X/P,
HPFR-HAMX-3000-H100-H100,
FH-1-LD3 (ID) 		HAMX-29 Heated automatic mixing pressure feed and recover system for inner diameter girth weld. MM-3000X/P or MM-5000X/P vacuum with HPFR-HAMX-3000-H100-H100, and FH-1-LD3 or heated HFH-1-LD3. Print Diagram
MM-5000X/P,
HPFR-HAMX-3000-H100-H100,

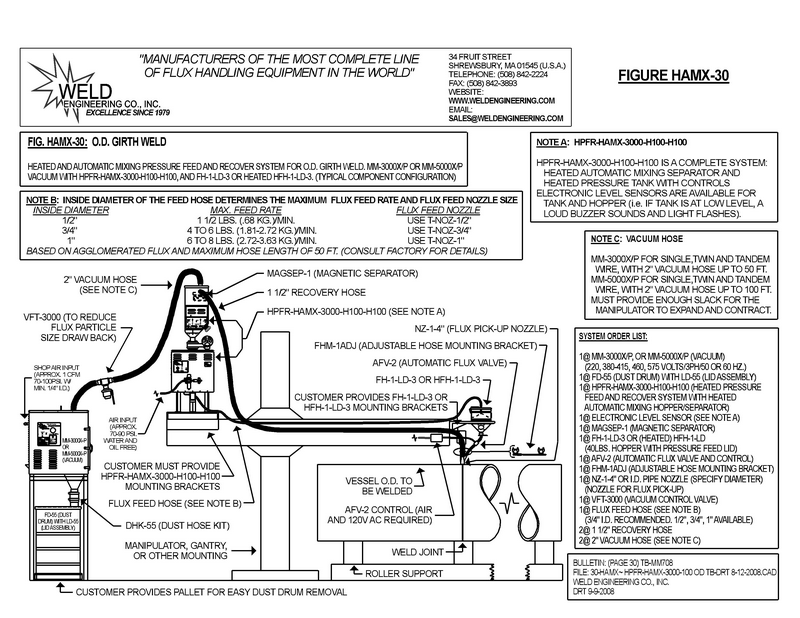

FH-1-LD3 (OD) 		HAMX-30 Heated automatic mixing pressure feed and recover system for outer diameter girth weld. MM-3000X/P or MM-5000X/P vacuum with HPFR-HAMX-3000-H100-H100, and FH-1-LD3 or heated HFH-1-LD3. Print Diagram

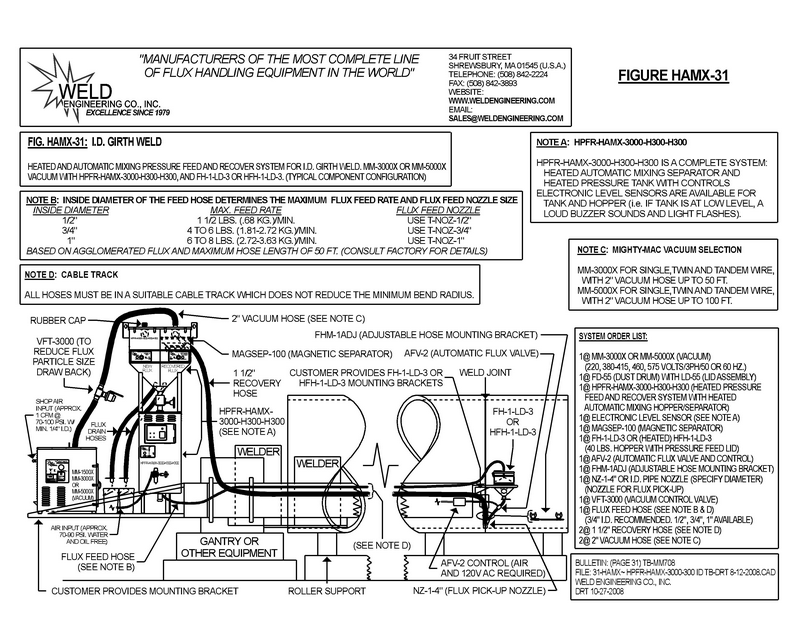

MM-5000X,
HPFR-HAMX-3000-H300-H300,
FH-1-LD3 (ID) 		HAMX-31 Heated automatic mixing pressure feed and recover system for inner diameter girth weld. MM-3000X or MM-5000X vacuum with HPFR-HAMX-3000-H300-H300, and FH-1-LD3 or heated HFH-1-LD3. Print Diagram
MM-5000X/P,
HPFR-HAMX-3000-H300-H300,

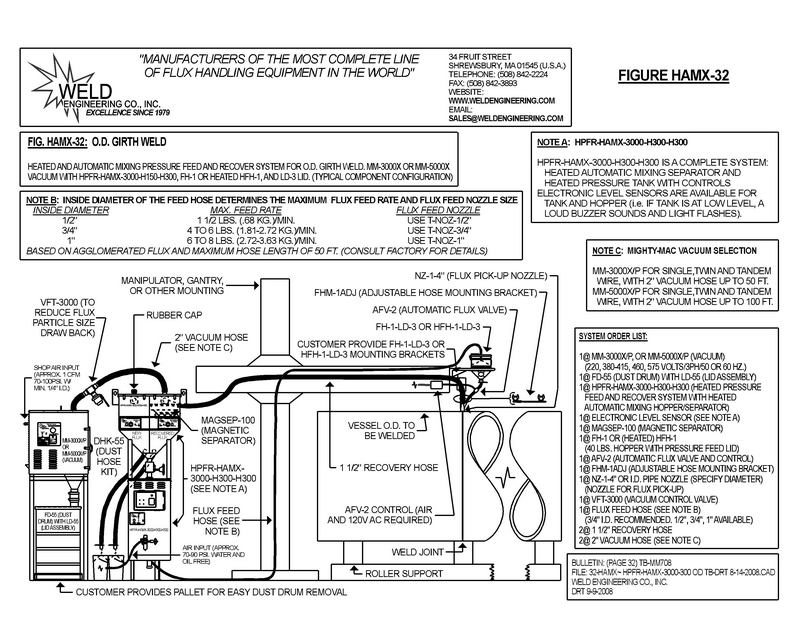

FH-1-LD3 (OD) 		HAMX-32 Heated automatic mixing pressure feed and recover system for outer diameter girth weld. MM-3000X/P or MM-5000X/P vacuum with HPFR-HAMX-3000-H300-H300, and FH-1-LD3 or heated HFH-1-LD3. Print Diagram

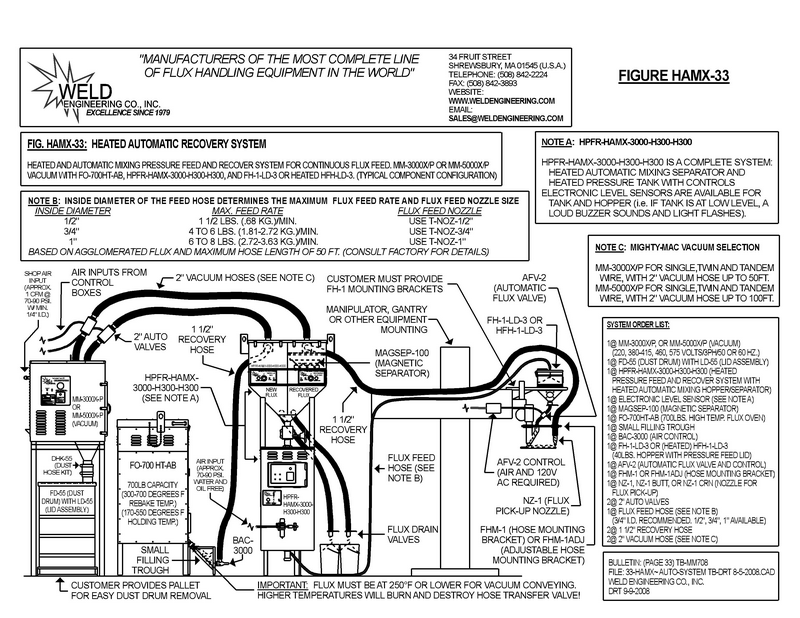

MM-5000X/P,
HPFR-HAMX-3000-H300-H300,
FH-1-LD3,
FO-700HT-AB 		HAMX-33 Heated automatic mixing pressure feed and recover system for continuous flux feed. MM-3000X/P or MM-5000X/P vacuum with FO-700HT-AB, HPFR-HAMX-3000-H300-H300, and FH-1-LD3 or heated HFH-1-LD3. Print Diagram
Pipe Mill / Ultra Heavy Duty Systems
MM-5000X-MILL,
PFR-3000,

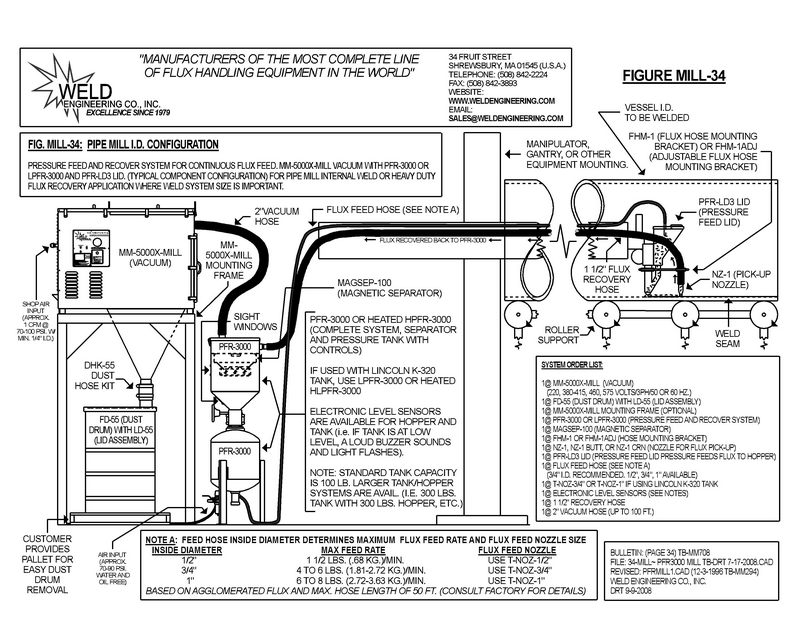

PFR-LD3 		MILL-34 Pressure feed and recover system for continuous flux feed. MM-5000X-MILL vacuum with PFR-3000 or LPFR-3000 and PFR-LD3 lid. For pipe mill internal weld or heavy duty flux recovery application where weld system size is important. Print Diagram

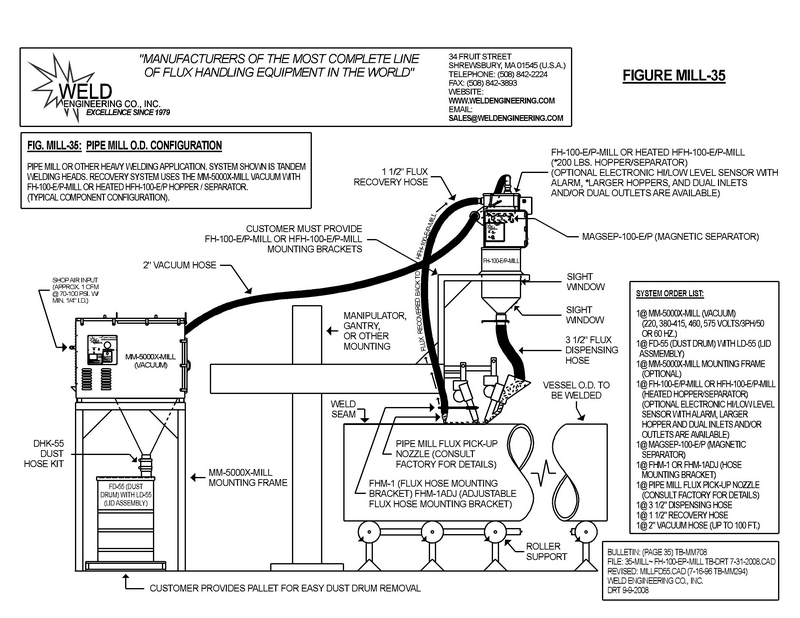

MM-5000X-MILL,
FH-100-EP-MILL 		MILL-35 Pipe mill or other heavy welding application. System shown is tandem welding heads. Recovery system uses the MM-5000X-MILL vacuum with FH-100-E/P-MILL or heated HFH-100-E/P-MILL hopper/separator. Print Diagram

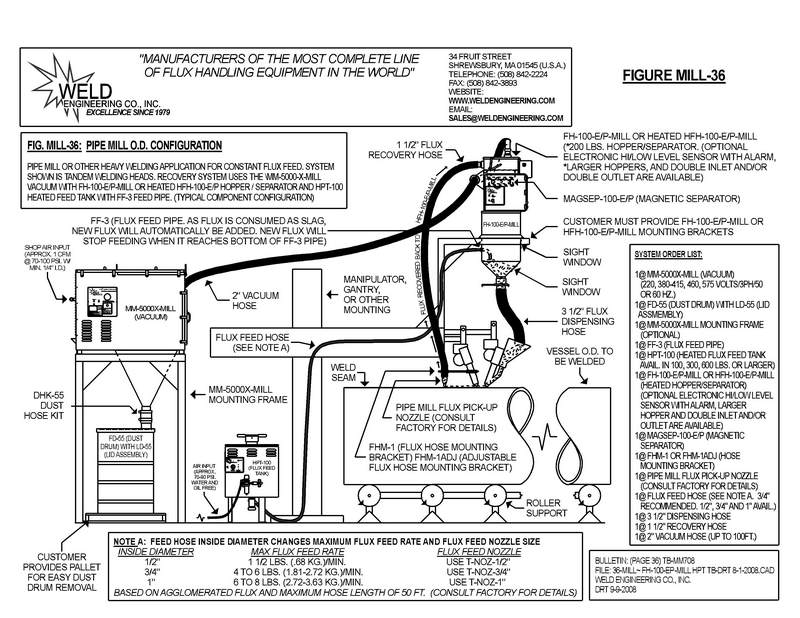

MM-5000X-MILL,
FH-100-EP-MILL,
HPT-100 		MILL-36 Pipe mill or other heavy welding application for constant flux feed. System shown is tandem welding heads. Recovery system uses the MM-5000X-MILL vacuum with FH-100-E/P-MILL or heated HFH-100-E/P-MILL hopper/separator and HPT-100 heated feed tank with FF-3 feed pipe. Download File
